Python Global Interpreter Lock

Let’s take a moment and understand the above diagram. As you can see, there is a factorial function and two threads 1 and 2, thread 1 is in the locked state while thread 2 is in a wait state. This means that only one of the threads is able to access the function. Now, let’s assume that the factorial function takes 2 seconds to complete. Then, in an ideal case, both the threads should be able to finish the execution in 2 seconds. However, this is not the case in Python, both the threads will run serially and not parallel to each other.

The threads 1 and 2 calling the factorial function may take twice as much time as a single thread calling the function twice. This also tells you that the memory manager governed by the interpreter is not thread-safe, which means that multiple threads fail to access the same shared data simultaneously.

Hence, GIL (Source: Understanding the Python GIL):

• Limits the threading operation.

• Parallel execution is restricted.

• The GIL ensures that only one thread runs in the interpreter at once.

• It helps in simplifying various low-level details like memory management.

With GIL cooperative computing or coordinated multitasking is achieved instead of parallel computing.

As it can be observed from the above diagram, there are three threads initially the thread 1 is running and it has acquired the GIL, and when an I/O operation like a read, write, etc. is done, thread 1 releases the GIL and it is then acquired by thread 2. This cycle keeps on going, and GIL keeps changing threads alternatively till the threads have completed the execution of the program. Remember that if any of the threads that do not have the lock and have not completed the execution, they will then be in a waiting state.

GIL in Python2 vs. Python3





Global Interpreter Lock in Python 2.7 works differently when compared to Python3. In a pure CPU-bound operation, the thread continues to run since there is no I/O operation in which case the other threads will be in an idle or a wait state, which is not what you would want. To solve this issue, Python2 has terminology known as ticks. The global interpreter lock performs a check to monitor the state of thread-like wait state, I/O operation, or whether it is being run. However, GIL does not keep monitoring the threads at every instance or time, rather it uses the concept of ticks, and it checks the threads at every 100 ticks.

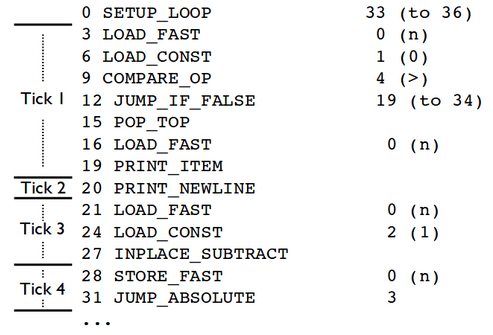

A tick is a byte-code instruction, and when the 100 byte-code instructions are completed, the GIL checks whether the threads are running or in a waiting state. It is important to remember that a tick is not related to time since it is a byte-code instruction. Each tick might take a longer or shorter time to run compared to the other.

This periodic check of monitory the threads after every 100 ticks is essential, especially in CPU bound operations since they do not have any I/O operations. Note that you can modify the tick counter using the built-in sys module of Python.

Let’s discuss some of the demerits of the above approach:

Now, if you look at this diagram, you may notice that the threads are not running parallel to each other but in a serial order, also known as cooperative computing governed by the global interpreter lock. Also, the threads have to wait for longer durations. For example, the thread T3 had to wait for both the threads T1 & T2 to release the GIL. Hence, the threads starve for the lock and the compute.

Another demerit is that there is a battle between the threads as to which thread will acquire the GIL. Initially, it might be the case that based on the priority T1 would have got the GIL, then T2, and so on. However, when T3 releases GIL, it will send a notification to all other threads, in which case all other threads will keep fighting to acquire the GIL. Having said that, you could potentially overcome this by setting the priorities of each thread.

In Python3, you have fixed-time allocated for each thread, i.e., 5ms of execution time. This prevents the threads from starving for resources since the waiting time is equal for all the threads. The threads will wait to see if the GIL gets released by Thread 1 on purpose because of I/O or sleep operation. If not, it will force it to release after 5ms. Hence, there will not be any starvation of CPU time since every thread will get an equal amount of time, and this will eliminate the challenge of acquiring the GIL.
