A guide to building Blockchain in Rust & Substrate

cargo check -p utxo-runtime
# Don’t worry if this takes a while, just let it run!
# You should see a few warnings but no breaking errors

/// Single transaction to be dispatched
#[cfg_attr(feature = "std", derive(Serialize, Deserialize))]
#[derive(PartialEq, Eq, PartialOrd, Ord, Default, Clone, Encode, Decode, Hash, Debug)]

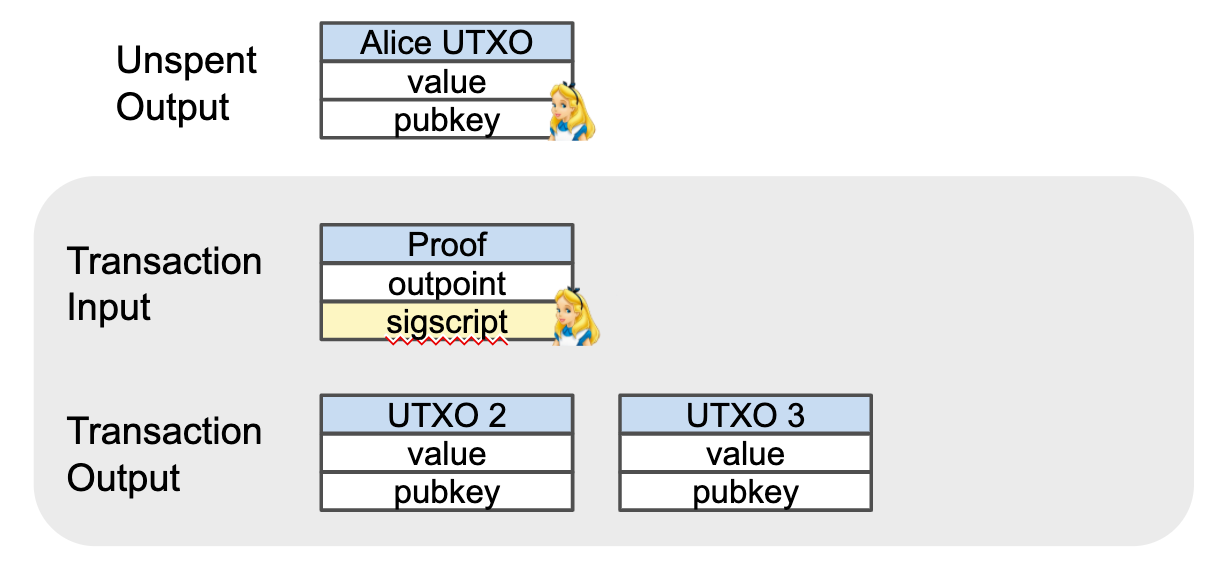

pub struct Transaction {
    /// UTXOs to be used as inputs for current transaction
    pub inputs: Vec<TransactionInput>,

    /// UTXOs to be created as a result of current transaction dispatch
    pub outputs: Vec<TransactionOutput>,
}

/// Single transaction input that refers to one UTXO
#[cfg_attr(feature = "std", derive(Serialize, Deserialize))]
#[derive(PartialEq, Eq, PartialOrd, Ord, Default, Clone, Encode, Decode, Hash, Debug)]
pub struct TransactionInput {
    /// Reference to an UTXO to be spent
    pub outpoint: H256,

    /// Proof that transaction owner is authorized to spend referred UTXO &
    /// that the entire transaction is untampered
    pub sigscript: H512,
}

/// Single transaction output to create upon transaction dispatch
#[cfg_attr(feature = "std", derive(Serialize, Deserialize))]
#[derive(PartialEq, Eq, PartialOrd, Ord, Default, Clone, Encode, Decode, Hash, Debug)]
pub struct TransactionOutput {
    /// Value associated with this output
    pub value: Value,

    /// Public key associated with this output. In order to spend this output
	/// owner must provide a proof by hashing the whole `Transaction` and
	/// signing it with a corresponding private key.
    pub pubkey: H256,
}

decl_storage! {
    trait Store for Module<T: Trait> as Utxo {
        /// All valid unspent transaction outputs are stored in this map.
        /// Initial set of UTXO is populated from the list stored in genesis.
        UtxoStore build(|config: &GenesisConfig| {
            config.genesis_utxos
                .iter()
                .cloned()
                .map(|u| (BlakeTwo256::hash_of(&u), u))
                .collect::<Vec<_>>()
        }): map H256 => Option<TransactionOutput>;

        /// Total reward value to be redistributed among authorities.
        /// It is accumulated from transactions during block execution
        /// and then dispersed to validators on block finalization.
        pub RewardTotal get(reward_total): Value;
    }

    add_extra_genesis {
        config(genesis_utxos): Vec<TransactionOutput>;
    }
}

// External functions: callable by the end user
decl_module! {
    pub struct Module<T: Trait> for enum Call where origin: T::Origin {
        fn deposit_event() = default;

        /// Dispatch a single transaction and update UTXO set accordingly
        pub fn spend(_origin, transaction: Transaction) -> DispatchResult {
                                    // TransactionValidity{}
            let transaction_validity = Self::validate_transaction(&transaction)?;

            Self::update_storage(&transaction, transaction_validity.priority as u128)?;

            Self::deposit_event(Event::TransactionSuccess(transaction));

            Ok(())
        }
}

decl_event!(
    pub enum Event {
        /// Transaction was executed successfully
        TransactionSuccess(Transaction),
    }
);

// "Internal" functions, callable by code.
impl<T: Trait> Module<T> {
    pub fn validate_transaction(transaction: &Transaction) -> Result<ValidTransaction, &'static str> {
        // Check basic requirements
        ensure!(!transaction.inputs.is_empty(), "no inputs");
        ensure!(!transaction.outputs.is_empty(), "no outputs");

        {
            let input_set: BTreeMap<_, ()> =transaction.inputs.iter().map(|input| (input, ())).collect();
            ensure!(input_set.len() == transaction.inputs.len(), "each input must only be used once");
        }
        {
            let output_set: BTreeMap<_, ()> = transaction.outputs.iter().map(|output| (output, ())).collect();
            ensure!(output_set.len() == transaction.outputs.len(), "each output must be defined only once");
        }

        let mut total_input: Value = 0;
        let mut total_output: Value = 0;
        let mut output_index: u64 = 0;
        let simple_transaction = Self::get_simple_transaction(transaction);

        // Variables sent to transaction pool
        let mut missing_utxos = Vec::new();
        let mut new_utxos = Vec::new();
        let mut reward = 0;

        // Check that inputs are valid
        for input in transaction.inputs.iter() {
            if let Some(input_utxo) = <UtxoStore>::get(&input.outpoint) {
                ensure!(sp_io::crypto::sr25519_verify(
                    &Signature::from_raw(*input.sigscript.as_fixed_bytes()),
                    &simple_transaction,
                    &Public::from_h256(input_utxo.pubkey)
                ), "signature must be valid" );
                total_input = total_input.checked_add(input_utxo.value).ok_or("input value overflow")?;
            } else {
                missing_utxos.push(input.outpoint.clone().as_fixed_bytes().to_vec());
            }
        }

        // Check that outputs are valid
        for output in transaction.outputs.iter() {
            ensure!(output.value > 0, "output value must be nonzero");
            let hash = BlakeTwo256::hash_of(&(&transaction.encode(), output_index));
            output_index = output_index.checked_add(1).ok_or("output index overflow")?;
            ensure!(!<UtxoStore>::exists(hash), "output already exists");
            total_output = total_output.checked_add(output.value).ok_or("output value overflow")?;
            new_utxos.push(hash.as_fixed_bytes().to_vec());
        }

        // If no race condition, check the math
        if missing_utxos.is_empty() {
            ensure!( total_input >= total_output, "output value must not exceed input value");
            reward = total_input.checked_sub(total_output).ok_or("reward underflow")?;
        }

        // Returns transaction details
        Ok(ValidTransaction {
            requires: missing_utxos,
            provides: new_utxos,
            priority: reward as u64,
            longevity: TransactionLongevity::max_value(),
            propagate: true,
        })
    }
}

/// Update storage to reflect changes made by transaction
    /// Where each utxo key is a hash of the entire transaction and its order in the TransactionOutputs vector
    fn update_storage(transaction: &Transaction, reward: Value) -> DispatchResult {
        // Calculate new reward total
        let new_total = <RewardTotal>::get()
            .checked_add(reward)
            .ok_or("Reward overflow")?;
        <RewardTotal>::put(new_total);

        // Removing spent UTXOs
        for input in &transaction.inputs {
            <UtxoStore>::remove(input.outpoint);
        }

        let mut index: u64 = 0;
        for output in &transaction.outputs {
            let hash = BlakeTwo256::hash_of(&(&transaction.encode(), index));
            index = index.checked_add(1).ok_or("output index overflow")?;
            <UtxoStore>::insert(hash, output);
        }

        Ok(())
    }

    // Strips a transaction of its Signature fields by replacing value with ZERO-initialized fixed hash.
    pub fn get_simple_transaction(transaction: &Transaction) -> Vec<u8> {//&'a [u8] {
        let mut trx = transaction.clone();
        for input in trx.inputs.iter_mut() {
            input.sigscript = H512::zero();
        }

        trx.encode()
    }

// This function basically just builds a genesis storage key/value store according to our desired mockup.
    // We start each test by giving Alice 100 utxo to start with.
    fn new_test_ext() -> sp_io::TestExternalities {

        let keystore = KeyStore::new(); // a key storage to store new key pairs during testing
        let alice_pub_key = keystore.write().sr25519_generate_new(SR25519, Some(ALICE_PHRASE)).unwrap();

        let mut t = system::GenesisConfig::default()
            .build_storage::<Test>()
            .unwrap();

        t.top.extend(
            GenesisConfig {
                genesis_utxos: vec![
                    TransactionOutput {
                        value: 100,
                        pubkey: H256::from(alice_pub_key),
                    }
                ],
                ..Default::default()
            }
            .build_storage()
            .unwrap()
            .top,
        );

        // Print the values to get GENESIS_UTXO
        let mut ext = sp_io::TestExternalities::from(t);
        ext.register_extension(KeystoreExt(keystore));
        ext
    }

    #[test]
    fn test_simple_transaction() {
        new_test_ext().execute_with(|| {
            let alice_pub_key = sp_io::crypto::sr25519_public_keys(SR25519)[0];

            // Alice wants to send herself a new utxo of value 50.
            let mut transaction = Transaction {
                inputs: vec![TransactionInput {
                    outpoint: H256::from(GENESIS_UTXO),
                    sigscript: H512::zero(),
                }],
                outputs: vec![TransactionOutput {
                    value: 50,
                    pubkey: H256::from(alice_pub_key),
                }],
            };

            let alice_signature = sp_io::crypto::sr25519_sign(SR25519, &alice_pub_key, &transaction.encode()).unwrap();
            transaction.inputs[0].sigscript = H512::from(alice_signature);
            let new_utxo_hash = BlakeTwo256::hash_of(&(&transaction.encode(), 0 as u64));

            assert_ok!(Utxo::spend(Origin::signed(0), transaction));
            assert!(!UtxoStore::exists(H256::from(GENESIS_UTXO)));
            assert!(UtxoStore::exists(new_utxo_hash));
            assert_eq!(50, UtxoStore::get(new_utxo_hash).unwrap().value);
        });
    }

    // need to manually import this crate since its no include by default
    use hex_literal::hex;

    const ALICE_PHRASE: &str = "news slush supreme milk chapter athlete soap sausage put clutch what kitten";
    const GENESIS_UTXO: [u8; 32] = hex!("79eabcbd5ef6e958c6a7851b36da07691c19bda1835a08f875aa286911800999");
